25691B Braced Web Bracket W/ Hangers & Insulators - 21.0 Inches
Product Description

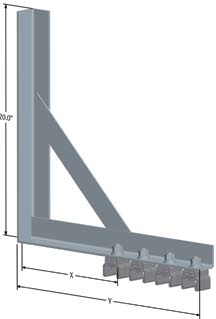

Hevi-Bar II Braced Web Bracket W/ 4 Hangers (Polycarbonate With Insulators, 24902) Pre-Installed. Plated Steel Bracket Finish. Dim X = 11.0 Inches, Dim Y = 21.0 Inches. Mounts to Vertical Web of Beam. Bracket is Single Iron Weldment Made of 2 Inch x 2 Inch Angle by 3/8 Inch Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). Used for Heavier 1500 Amp Conductor Bar
