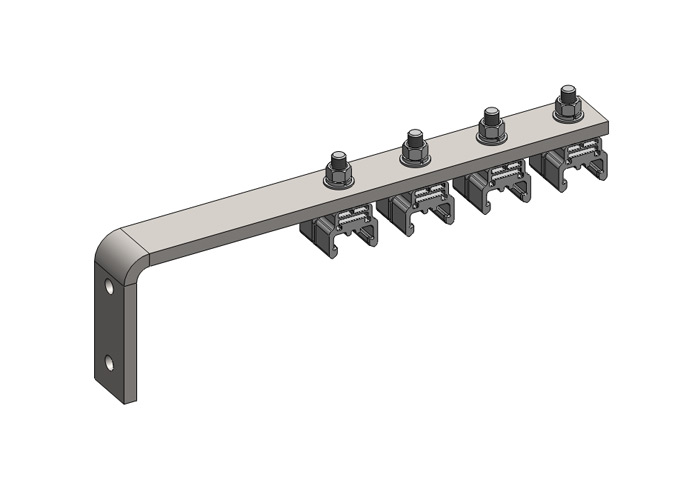

51786 S.S. Web Bracket W/ Std Hangers - 19.25 Inches
Product Description
Hevi-Bar II Web Bracket W/ 4 Hangers (Polycarbonate, 26591) Pre-Installed. Stainless Steel Bracket Finish. Dim X = 9.0 Inches, Dim Y = 19.25 Inches. Mounts to Vertical Web of Beam. Bracket is 2.5 Inches Wide by 3/8 Inches Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). For 500 Amp Conductors
