30281 Web Bracket W/ Std Steel Hangers - 6 Inches - 4 Conductors

30281      Web Bracket W/ Std Steel Hangers - 6 Inches - 4 Conductors
Item# 30281
Regular price: $37.94
Sale price: $30.35

Product Description

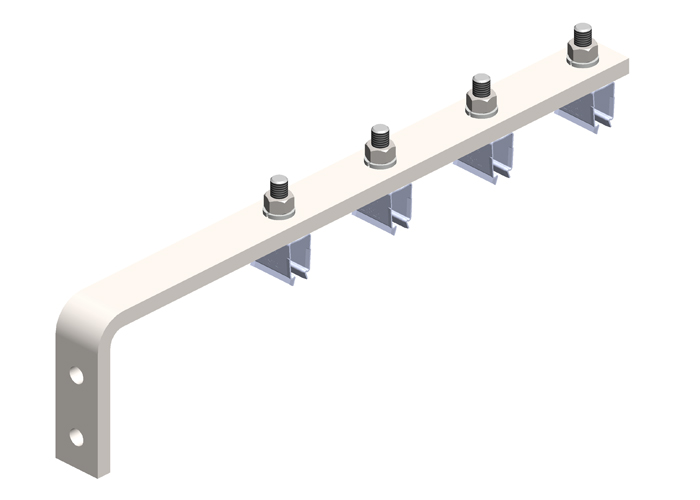

8-Bar - New 4 Conductor System. Web Mount Bracket - 6 Inches W/ 4 Snap-In Hangers (Steel, 21600) Pre-Installed. Zinc Plated Steel Finish. Dim X = 2.25 Inches, Dim Y = 11.75 Inches. Mounts to Vertical Web of Beam. Bracket is 2.5 Inches Wide by 3/8 Inches Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). Common Applications: Mainline / Top Running Applications, Web Mounted Bottom Entry Systems.
