32820 1500 Amp Orange Cover Exp Joint

32820    1500 Amp Orange Cover Exp Joint
Item# 32820
Regular price: $1,489.39
Sale price: $1,340.45

Product Description

Be sure to select LTL Standard for shipping method in cart or call 1-866-755-6102 to order and arrange LTL Shipment. This length cannot ship UPS.

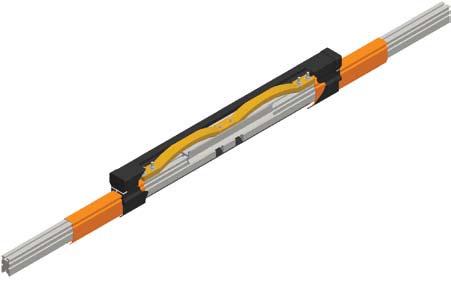

Hevi-Bar II PVC - 1000 Amp - Orange, Bar Length = 20.0 ft each, Common Applications: Medium to Large Overhead Cranes, Max Voltage = 600 V, Max Speed = 2000 ft/min, Spacing Between Bars = 3.0 Inches, Max Cover Temp = 160 degF, Indoor Environment, Duracoat Option Available (See 50742-J), Expansion Sections Are Used at All Structural Expansions Joints and for Systems Longer Than 390 ft (118.87 m) to Allow for Thermal Expansion / Contraction of the Bar. The Maximum Gap of the Expansion Section is 4 inches (100 mm). The Expansion Section is Installed in Place of One Length of Conductor Bar.
