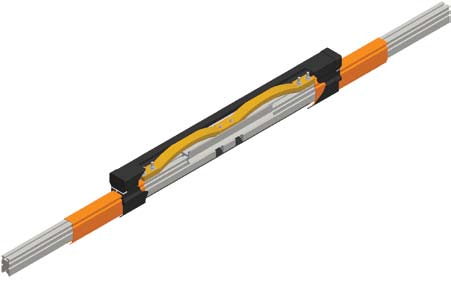

39287 1500 Amp Red Cover Exp Joint
Product Description
Due to drastic changes in freight costs for over length items, c-track must now ship freight collect using your carrier, call 1-866-755-6102 to order and arrange LTL Shipment. This length cannot ship UPS.
Hevi-Bar II Poly Carbonate - 1500 Amp - Red Medium Heat (Phase & Ground), Bar Length = 20.0 ft each, Common Applications: Medium to Large Overhead Cranes, Max Voltage = 600 V, Max Speed = 2000 ft/min, Spacing Between Bars = 3.0 Inches, Max Cover Temp = 250 degF, Indoor or Outdoor Environment, Duracoat Option Available (See 50060-J), Expansion Sections Are Used at All Structural Expansions Joints and for Systems Longer Than 390 ft (118.87 m) to Allow for Thermal Expansion / Contraction of the Bar. The Maximum Gap of the Expansion Section is 4 inches (100 mm). The Expansion Section is Installed in Place of One Length of Conductor Bar.
