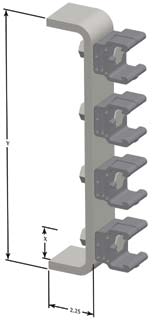

50498 Lateral Bracket Only - 12.0 Inches
Product Description
Hevi-Bar II Lateral Bracket Only (No Hangers Included). Plated Steel Bracket Finish. Dim X = 1.5 Inches, Dim Y = 12.0 Inches. Mounts to Vertical Web of Beam to Configure Conductor Bar One Above the Other. Bracket is 2 1/2 Inch Wide by 3/8 Inch Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). Used for 700-1000-1500 Amp Conductor Bar
