Product Description

Be sure to select LTL Standard for shipping method in cart or call 1-866-755-6102 to order and arrange LTL Shipment. This length cannot ship UPS.

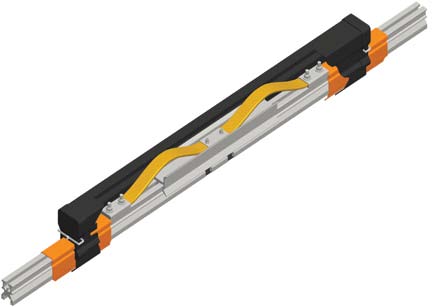

Hevi-Bar II Dura-Coat, PVC - 1000 Amp Expansion Section - Orange, Bar Length = 20.0 ft each, Common Applications: Highly Corrosive Environments, Medium to Large Overhead Cranes, Max Voltage = 600 V, Max Speed = 2000 ft/min, Spacing Between Bars = 3.0 Inches, Max Cover Temp = 160 degF, Indoor Environment, Non-Duracoat Option Available (See 23512), Expansion Sections Are Used at All Structural Expansions Joints and for Systems Longer Than 390 ft (118.87 m) to Allow for Thermal Expansion / Contraction of the Bar. The Maximum Gap of the Expansion Section is 4 inches (100 mm). The Expansion Section is Installed in Place of One Length of Conductor Bar, Splices are Pre-installed on Dura-Coat Conductors
