51878C Flange Bracket W/ S.S. Cross-Bolt Hangers - 23.5 Inches

51878C     Flange Bracket W/ S.S. Cross-Bolt Hangers - 23.5 Inches
Item# 51878C
Regular price: $133.96
Sale price: $120.56

Product Description

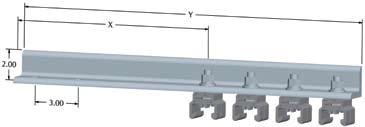

Hevi-Bar II Flange Bracket W/ 4 Hangers (Stainless Steel Cross-Bolt Hangers, 25986) Pre-Installed. Plated Steel Bracket Finish. Dim X = 13.25 Inches, Dim Y = 23.5 Inches. Mounts to Top Flange of Beam. Bracket is a 2 Inch x 2 Inch Angle by 3/8 Inches Thick. All Holes to Accept Hangers are 3 Inches On-Center and 0.56 Inches Diameter (to Accept 3/8 Inch diameter hanger Bolts). The First Hole is 1-1/4 Inch From the End. For 700 - 1000 - 1500 Amp Conductors
